Datos del producto:
|
| Nombre del producto: | Piezas de andamio de escalera ajustable Base de gato sólido | Material: | Acero Q235 o acero 20# |
|---|---|---|---|
| Color: | Color propio, color plateado o dorado | Placa base: | 150*150*4mm |
| Peso: | 1-5kg | Diámetro de la varilla roscada: | 36 mm o personalizado |
| Longitud: | 600m m o modificado para requisitos particulares | Tipo: | Hueco |
| Tratamiento superficial: | Electro galvanizado | Aplicación: | Para construir andamios y hacer que los andamios sean más estables. |

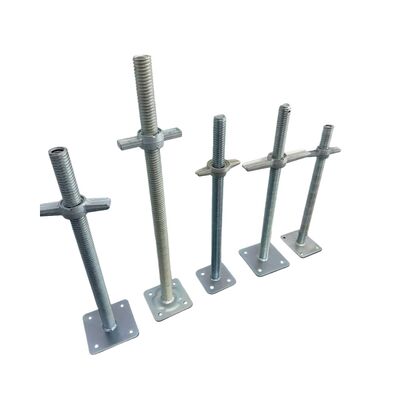

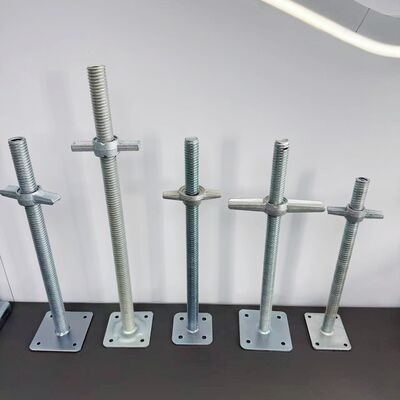

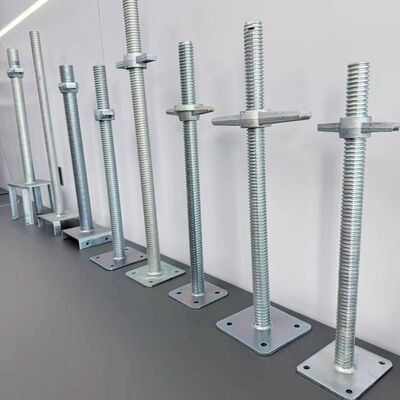

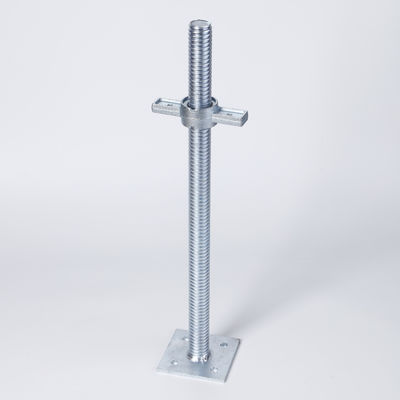

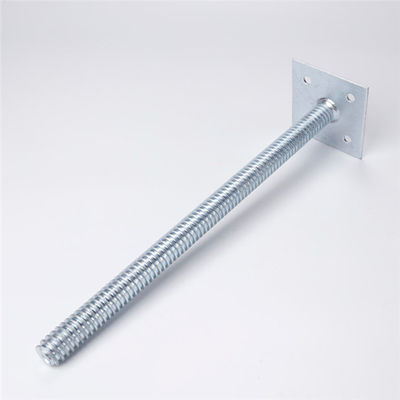

Adjustable Ladder Scaffolding Parts Solid Jack Base Scaffolding Jack Base
◆Product Overview
The stability of scaffolding is important for ensuring the safety of the structure and its ability to sustain the expected workload. As a result of this, you need highly efficient and strong jack bases when setting up new structures or customizing existing ones for specific tasks. And, that is exactly what you can get from Us.
Our jack bases are available in a wide range of dimensions to select from. To support various kinds of workloads, the jack bases come in different external diameter options. Besides, you can also choose the products based on the sizes of their bases. We have various sizes that can effectively work in different structures and sites.Considering the integral role of jack bases in bearing the weight of the structure and workers, they are also designed to handle varying weight combinations. We have jack bases that can accommodate loads of up to 6 tons. However, you can also order jack bases that are custom-designed to accommodate specific load capacities.
The jack bases that we supply are made from highly durable scaffolding materials with a focus on greater performance and efficiency.
They are manufactured using heavy duty steel, providing the much needed strength to hold scaffolds in place when working. These jack bases are also accorded proper surface treatments for prolonged lifespan.
For relability when setting up or dismantling the jack bases, they also have modular scaffold design. You can also choose between jack bases with electro-plating jack, hot dip galvanization or other kinds of surface finishing. Besides, these products are also undergoing numerous innovative procedures to include even greater features and qualities.
At the bottom of the jack base, there are also holes that can be used with nails or other fasteners to keep it held onto the ground.
When used appropriately,. there is no doubt you will have a very stable structure that will not keep moving or shaking when in use.
◆Product Parameter
| Adjustable Jack Base (Solid) | ||
| Picture | Tube diameter | 30/32/34/38mm etc, Customized Diameter is OK |
 |
Tube Length | 400/600mm etc, Customized Length is OK |
| Base Plate Size | 120*120*5mm 150*150*5mm etc,Customized Size is OK | |
| Jack Nut | Various Shape and weight are available | |
| Strength | 80KN---230KN | |
| Type | Solid or hollow | |
| Application | Jack base is located in the bottom of the standards, can provide adjustment for variations in ground levels | |
◆Product Advantage
1. Heavy loading capacity.
2. Durable & stable.
3.Easy to assemble & dismantle.
4.Corrode-resistantace, slip prevention, anti-fire, less weight.
5. Excellent security function.
After years of effort, our products have been exported to over 30 countries and regions in Southeast Asia,The Middle East, Europe and America, including Singapore,Thailand,USA,UK,UAE,Russian,Norway,Morocco,Bangladesh etc.
Always keeping “Customer First ” in mind , We sincerely welcome domestic and foreign customers to visit us to seek common development.
For more details, just click here to download product catalog
